AbForm Ekopur-35A

Description

Two-component polyurethane for the production of flexible rubber products

AbForm Ekopur- Shore 35A

Two-component polyurethane system for castings – professional resin + hardener

The product offered is a high-quality, two-component casting system based on polyurethane resin and hardener, completely solvent-free. The material has been developed for technical castings, flexible moulds and components requiring high mechanical resistance and dimensional stability.

Thanks to its optimal hardness (35 Shore A), low shrinkage (<0.5%) and very good detail reproduction, it is ideal for industrial applications as well as modelling and artistic work.

Applications

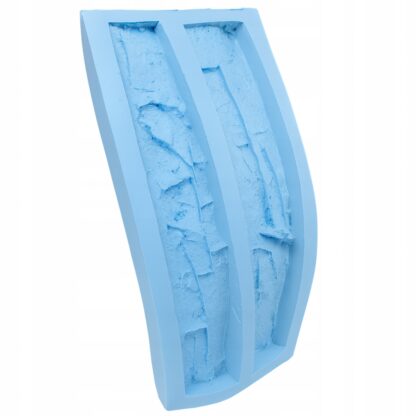

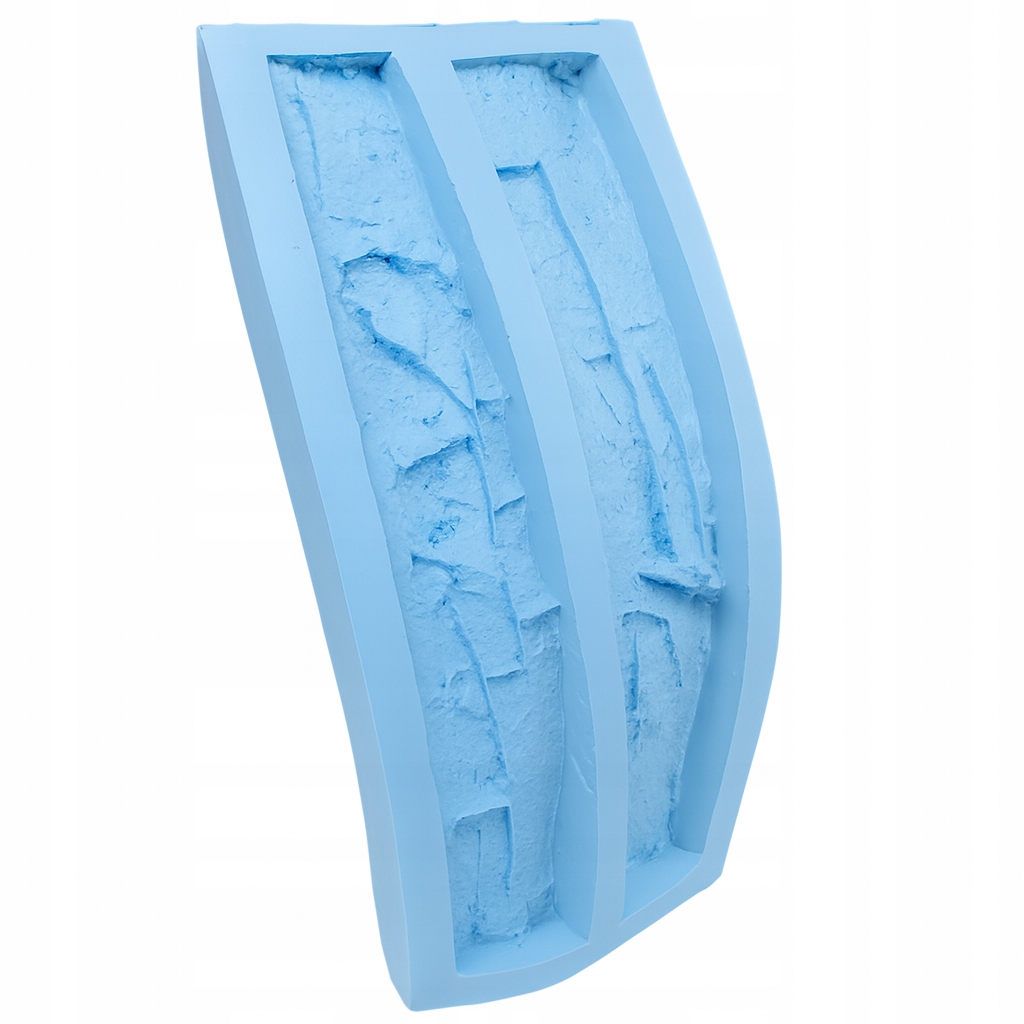

• Production of flexible moulds for architectural concrete, plaster, wax, epoxy and polyester resins.
• Castings of technical and prototype components (bushings, shock absorbers, anti-vibration components).
• Gaskets, washers, rubber-like components exposed to variable conditions.

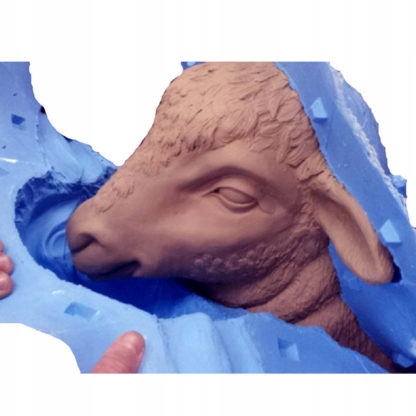

• Copies of sculptures, figurines, decorative and artistic elements with a high degree of detail
• Moulds for jewellery casting and small-batch production of functional parts
• Replicas and reconstruction elements requiring tensile and tear resistance

PRODUCT PROPERTIES

Technical data

• Composition: polyurethane resin + hardener, solvent-free product
• Mixing ratio (A : B): 100 : 80 by weight
• Hardness (Shore A): 30 – 35
• Density (A+B): 1.02 g/ml
• Shrinkage: <0.5%
• Elongation at break: 850%
• Tensile strength at break: 2.70 MPa
• Modulus E: 0.6 MPa (low modulus)
• Solid content: 100%
• Temperature resistance (after full curing): 60–65°C
• Low-temperature brittleness (after full curing): down to -40°C
• Pot life: approx. 15 minutes (at 20°C and 50% RH)
• Tack-free time: 3–4 hours
• Demoulding time: 24–36 hours
• Full curing: 7 days
