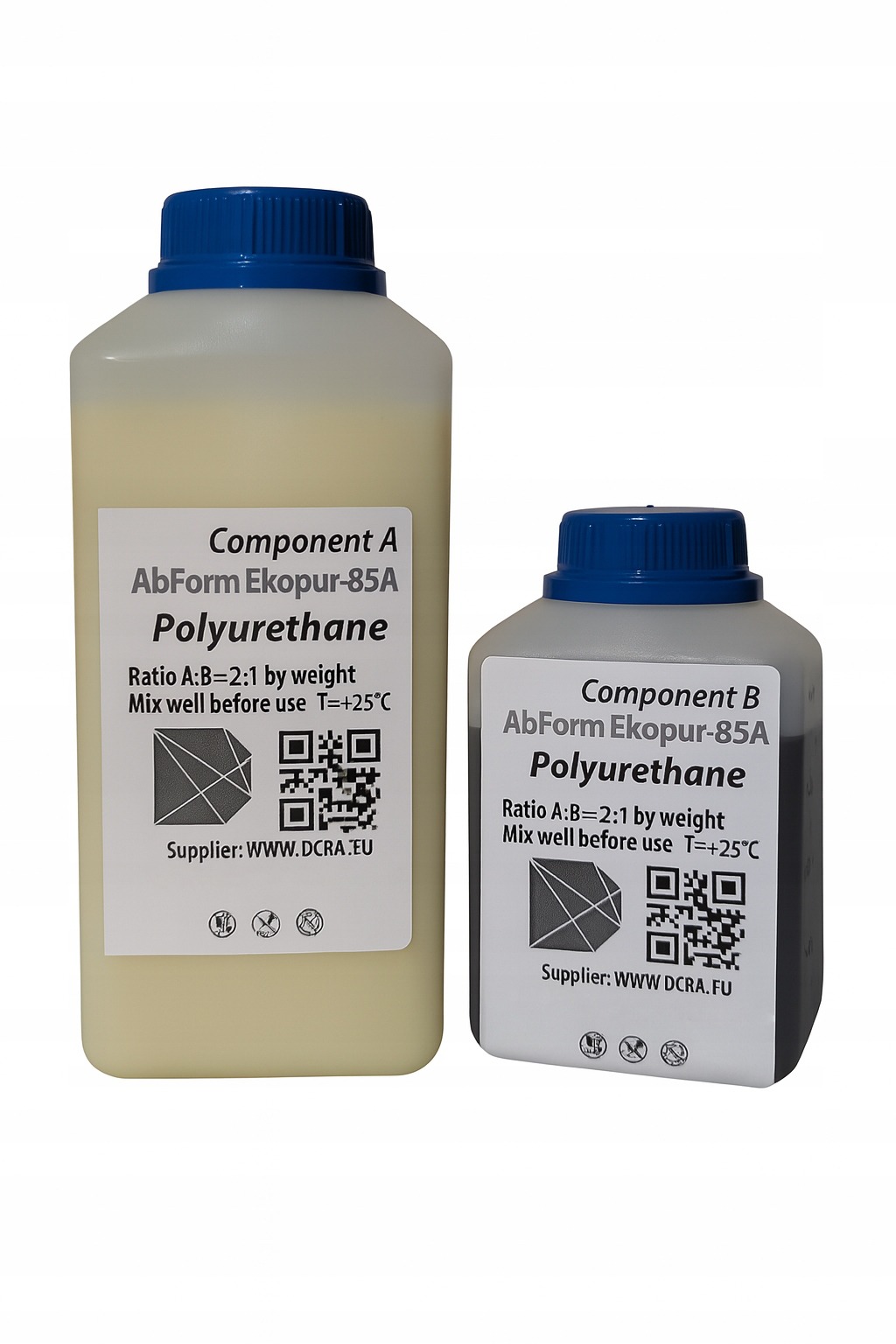

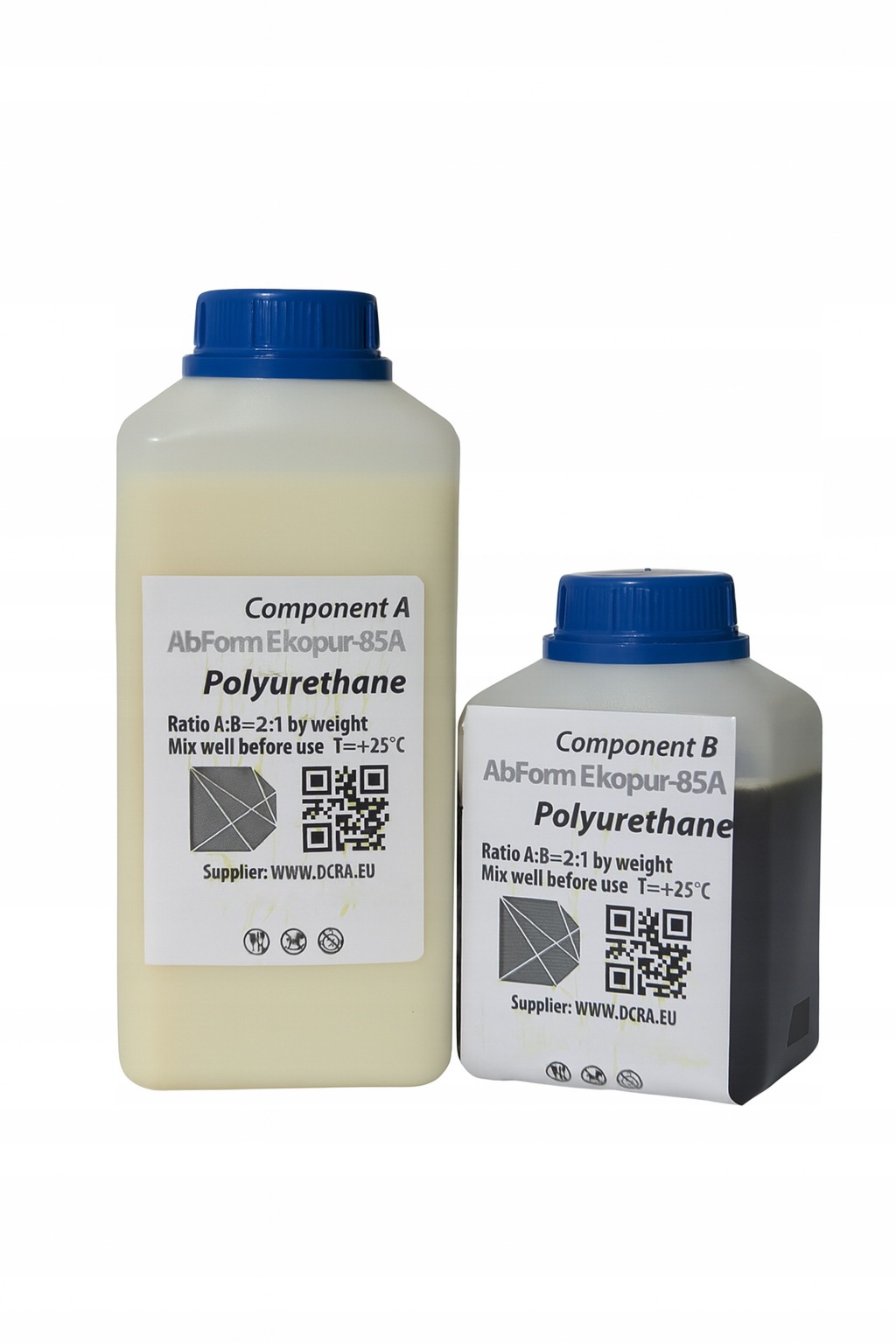

AbForm Ekopur-85A

From  14.99

Clear
GTIN-13/EAN SKU: 0010085-1 Category:

Description

Impression Ekopur Shore 85A
Two-component polyurethane system for casting applications – professional resin + hardener

The offered product is a high-quality, solvent-free two-component casting system based on polyurethane resin and hardener. The material has been specially developed for the production of technical castings, elastic moulds and components with high mechanical strength and dimensional stability.

Thanks to the optimal hardness (80-85 Shore A), the low shrinkage (<0.5%) and the excellent detail reproduction, it is suitable for industrial applications as well as for model making and artistic works.

Scope

✔ Production of elastic moulds for architectural concrete, plaster, wax, epoxy and polyester resins
✔ Casting of technical and prototypical components (bushings, dampers, vibration dampers)
✔ Seals, underlays and rubber-like components for changing operating conditions
✔ Copies of sculptures, figures, decorative and artistic elements with high attention to detail
✔ Molds for jewelry casting as well as small batch production of used parts
✔ Replicas and reconstructing elements with high tensile and tear propagation resistance

PRODUCT CHARACTERISTICS – TEST METHODS

  • Composition: Polyurethane resin + hardener. Solvent-free
  • Mixing ratio (A:B): 2: 1 by weight
  • Hardness (Shore A Scale): 80-85
  • Density (A+B): 1.10g/ml
  • Shrinkage: <0.5% (internal tests)
  • Elongation at break: 220%
  • Tensile strength at breakage: 13 MPa
  • Tear propagation resistance: 17 N/mm
  • Solids content: 100% (calculated)
  • Temperature resistance: 60-65 °C (after complete curing, internal tests)
  • Brittle fracture behavior at low temperature: -40 °C (after complete curing, internal tests)
  • Pot Life: 12 minutes (conditions: 20 °C, 50% RH)
  • Surface Moldability (Tack Free Time): 3-4 hours
  • Demolding Time: 12-24 hours
  • Final Curing Time: 7 days
